| Catalogue ID | CCT | Beam | Light Output | Dimensions |
| ARCH-IRIS-A-T-35-930-10 | 3000K | 35 ° | 440 lm | ø80 x 86 mm |
| ARCH-IRIS-A-T-35-940-10 | 4000K | 35 ° | 440 lm | |
| ARCH-IRIS-A-T-60-930-10 | 3000K | 60 ° | 450 lm | |
| ARCH-IRIS-A-T-60-940-10 | 4000K | 60 ° | 450 lm |

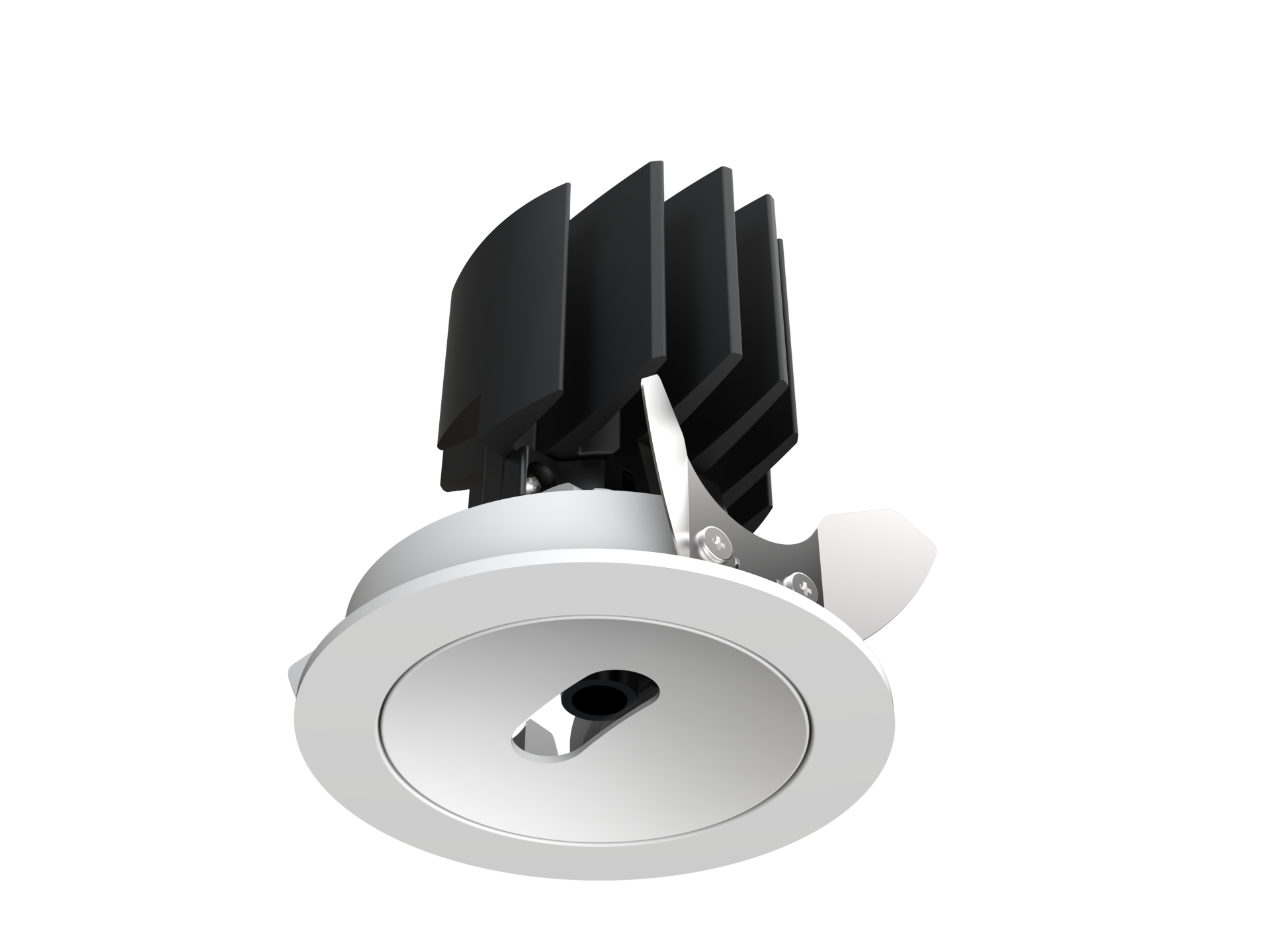

Aya Max Adjustable features an invisible step-adjustment spring, allowing up to 30° of tilt even after installation. Combined with precision aluminium frames, the luminaire also offers 355° of rotation for flexible, targeted lighting. A large die-cast aluminium heat sink ensures excellent thermal management and extends product longevity.
Aya Max Adjustable is available in 35° and 60° beam angles, making it suitable for both accentuating artwork and providing gentle, ambient illumination. Each luminaire is offered in three correlated colour temperatures—2700K, 3000K, and 4000K—with a high colour rendering index (CRI) to ensure excellent visual comfort and clarity.
Design features

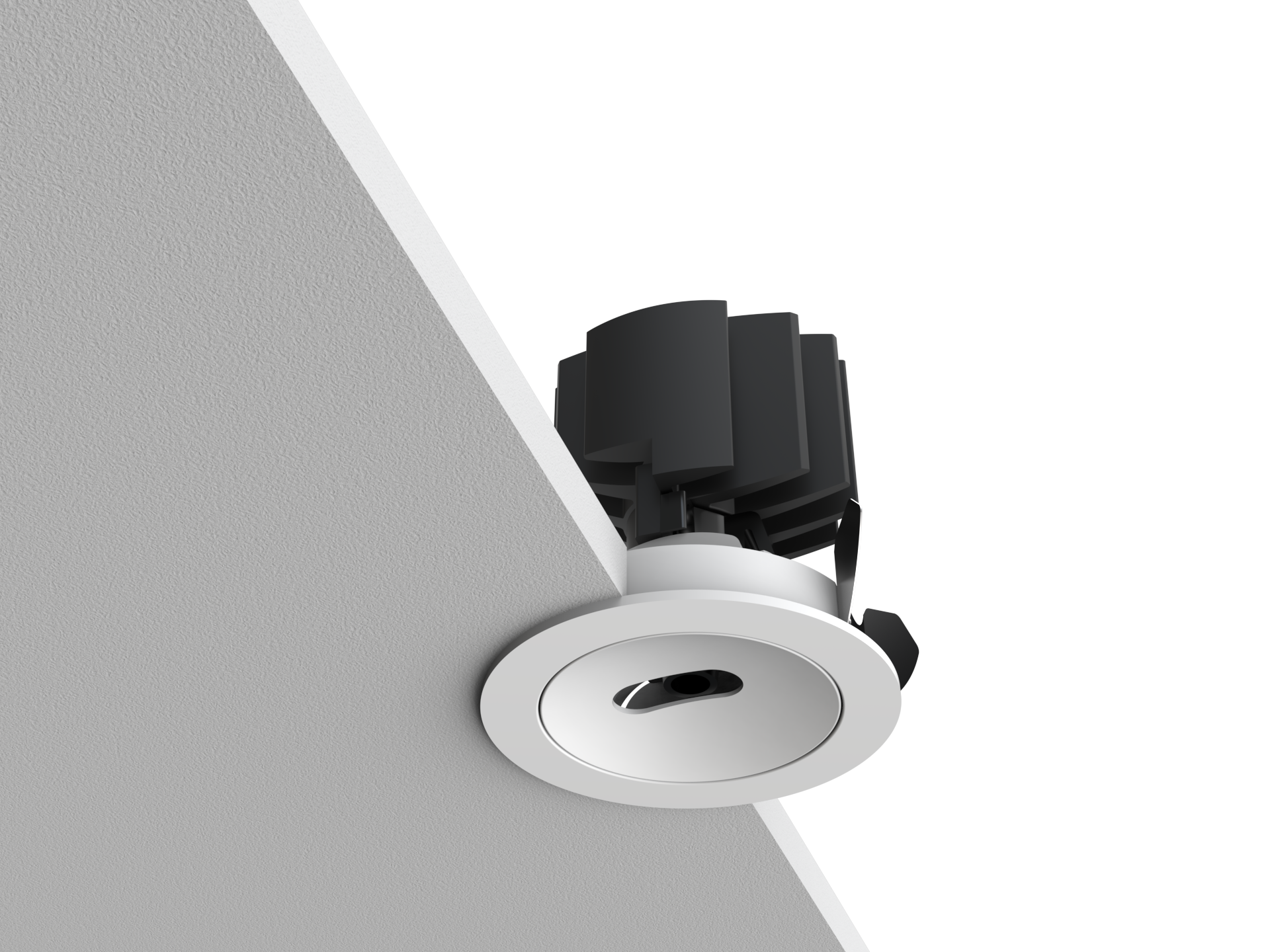

Thanks to its concealed angle adjustment mechanism, Aya Max Adjustable can be tilted post-installation without opening the luminaire. A hidden insert moves smoothly within the 11 mm elongated aperture, preserving the luminaire’s clean, minimalist design without compromise.
Optical features
The Aya Max Range offers two lighting distributions—35° and 60°—within the same compact form, ensuring a consistent visual appearance across spaces with varying ceiling heights or lighting needs. Its advanced optical design delivers uniform light, low glare (UGR), and exceptional visual comfort.
Mechanical features

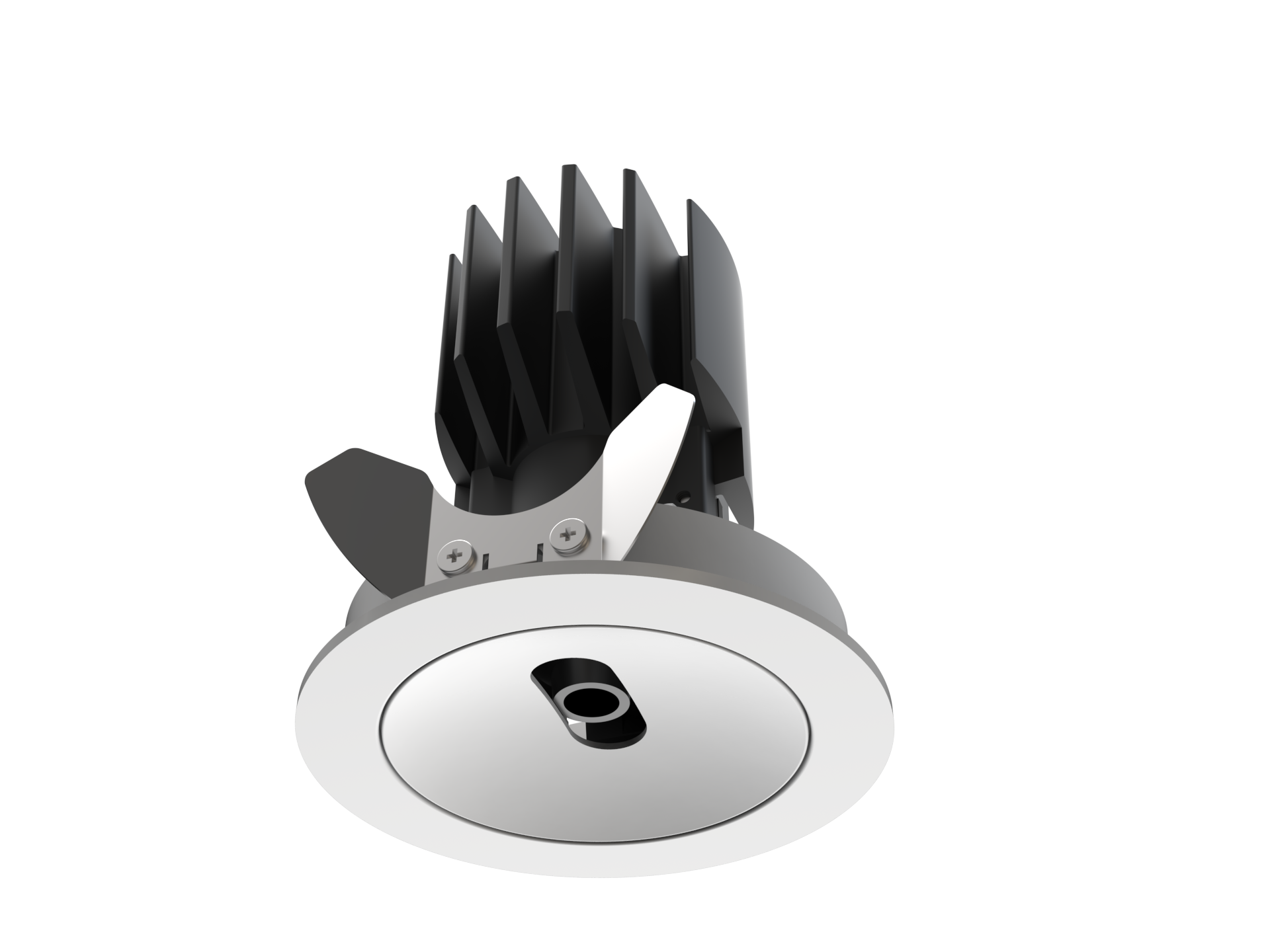

A precision-engineered aluminium frame enables 355° rotation and a 30° tilt, offering flexible and accurate light positioning. The invisible design integrates a large die-cast aluminium heat sink for excellent thermal performance and extended product life. Aya Max Adjustable also features IP20 protection against dust and water ingress.
