Retro Range
Easy to install, easy to maintain. Available in two basic shapes, round and square. Retro family is based on MR16 fitting that allows it to be equipped with various range of standard LED modules.
Available if warm light colors, it is suitable for use in high class hotels and restaurants. With a color rendering index of max. CRI 97 and R9(red)>85, colour reproduction of our MR16 is close to that of sunlight.

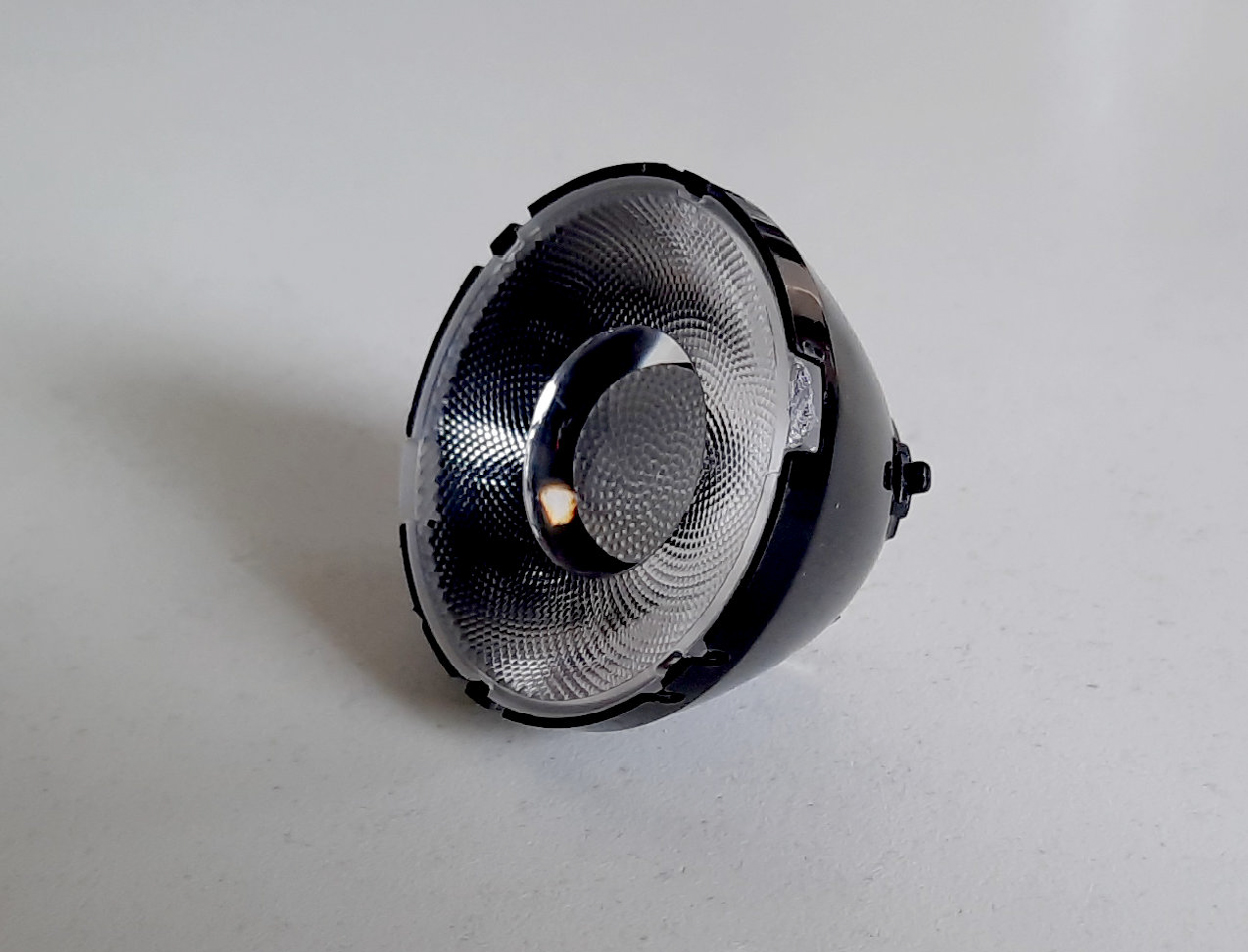

Deep TRI lens is optimised for best light control, whiles faceted structure is spreading light over large surface to maximise visual comfort.
Beam me up

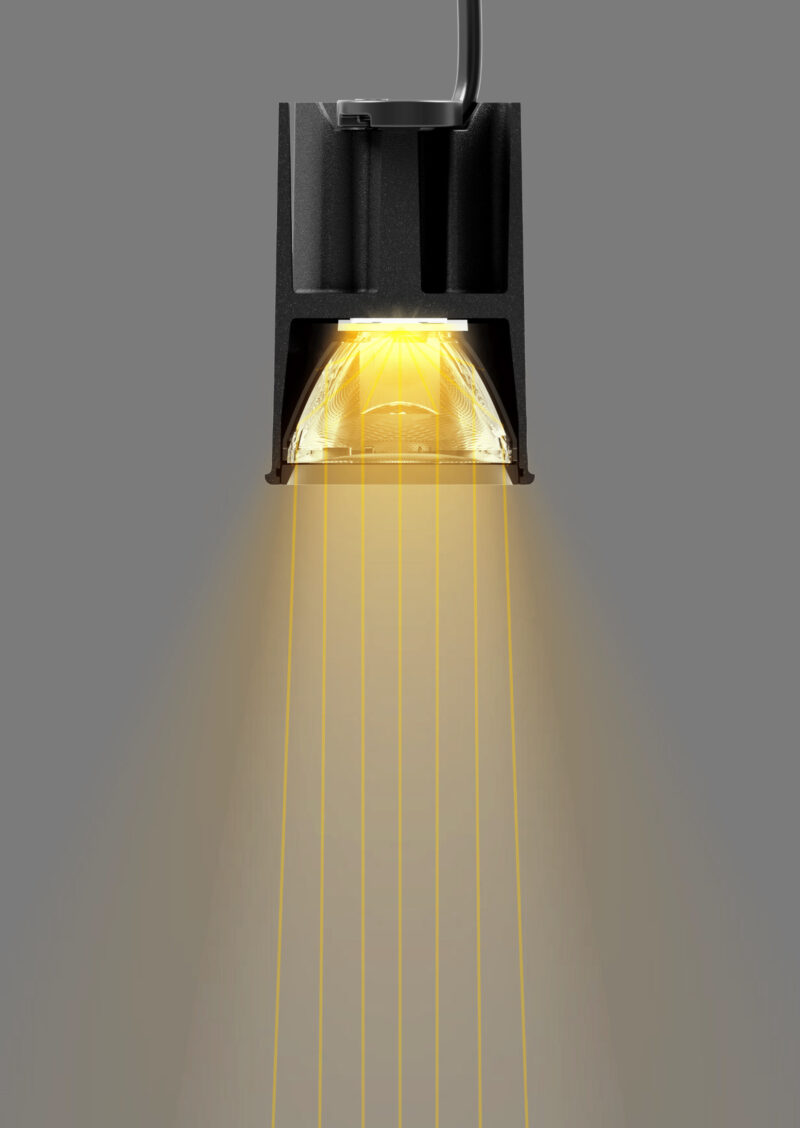

Large volumetric TIR lens has specific relation of diameter and height, which allows better control of light in comparison to the flat Fresnel lenses. This increase culmination ability of the lens and gives it more precise light beam.
Dark lens holder is absorbing any light that might escaping lens, instead of reflecting it back without control as a glary, stray light.
Because of contact between reflecting and refracting (exit) surface, lens rim is area especially critical for generating uncontrolled stray light. By covering this area with a dark snoot we are precisely eliminating stray light, without major influence on the optic efficiency.

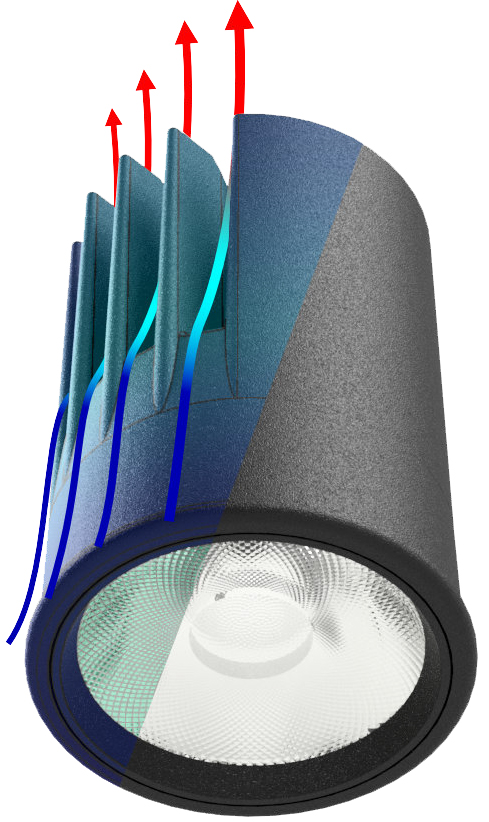

Thermal Management
Dense heat sink fins, or incorrect positioning can block the airflow and lead to air pockets where hot air is accumulated and cannot be extracted from the heat sink.
Designed by our R&D team this heat sink has optimised fins size and fin distance to promote airflow and allows best usage of heat sing volume and surface area.
This allow us to dissipate more heat from this only 70mm high engine.

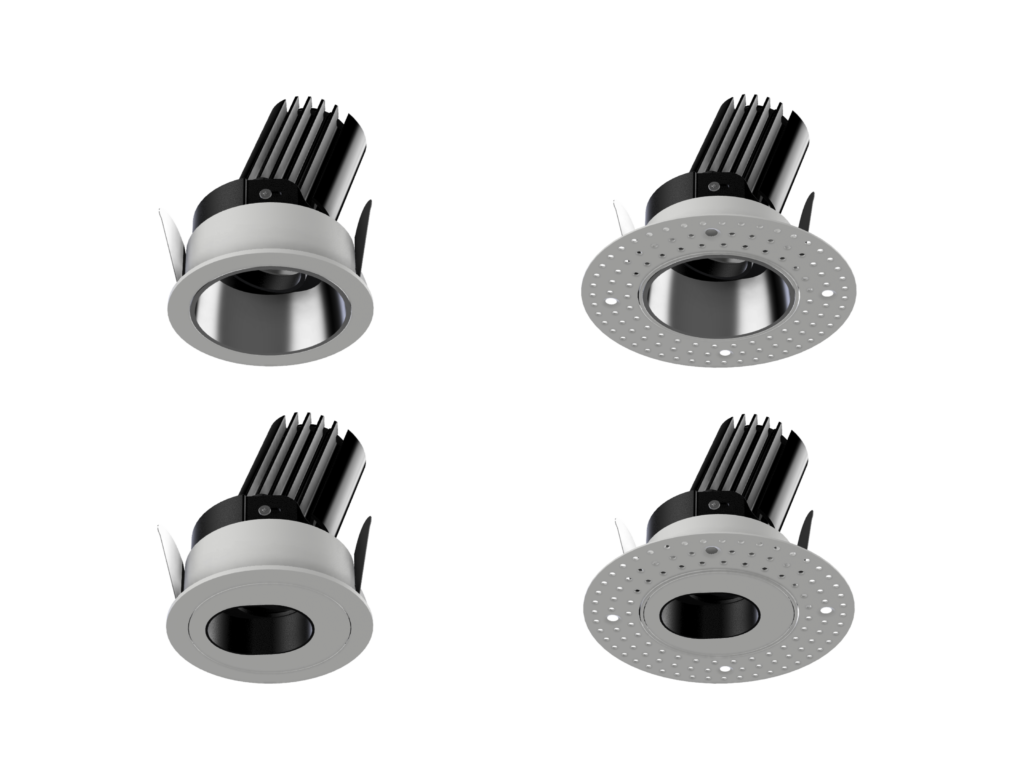

With choice of suitable frame each version, Retro can be installed in ceiling with visible trim or trimless.

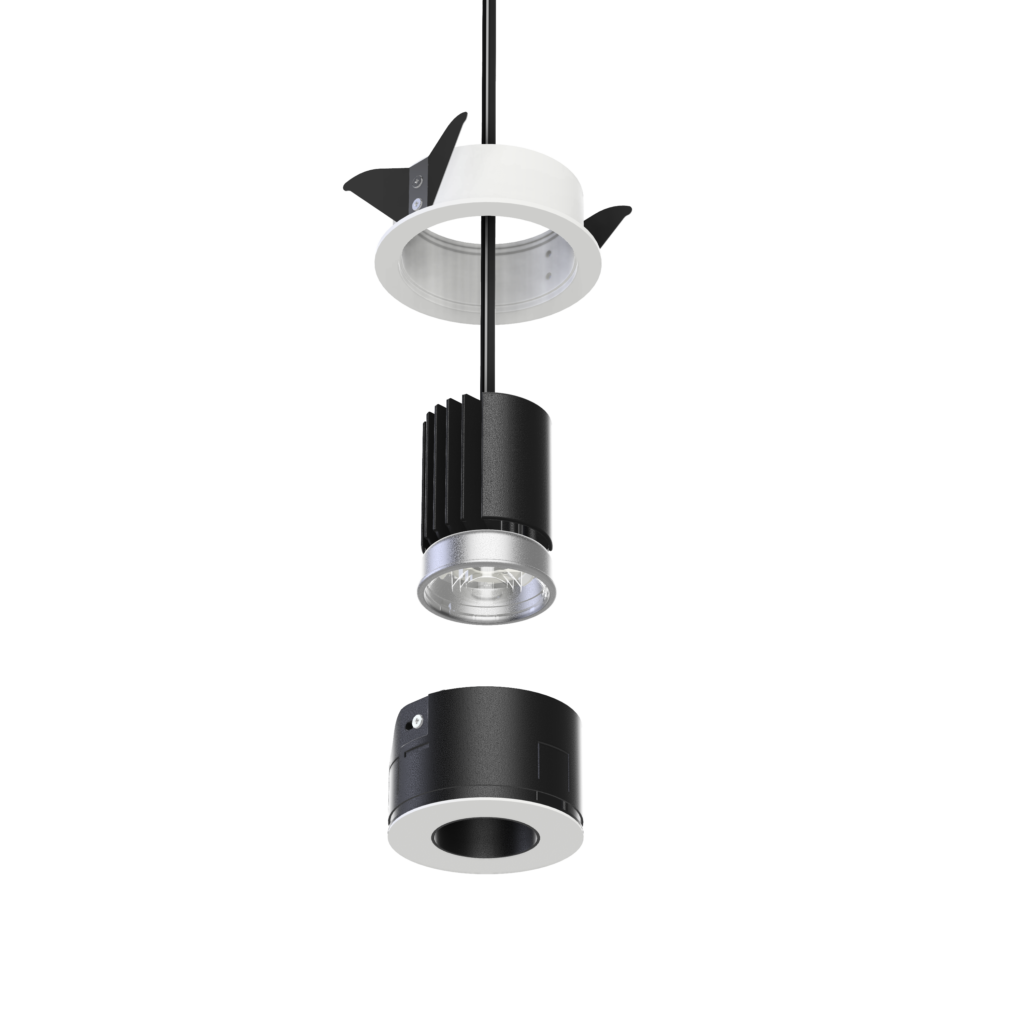

The modular concept allows easy combination of system elements which makes Retro suitable for every project.
Swiveling of light source up to 30° and rotation up to 355° allows Retro to direct light beam towards objects and artworks and their accentuation by means of spot light distribution.
Design features
IMetalised reflector in different color finishes can adapt to visual identity of the space in general and public areas. Deeply recessed light source and pinhole design tend to hide light source and make this product blend into ceiling as invisible glare-free light which is especially appreciated in hotel application.
Optical features
High efficiency TIR lens available in three beam angles. Variety of optical accessorize like anti-glare honeycomb for a complete light comfort, while frosted and ribbed glass are ideal for beam spreading.
Mechanical features
Once frame is installed in ceiling LED module and power supply could be approached form front side without dismounting luminaire from the ceiling. This makes the maintenance and light source upgrade easy and effective. Two power options for Tridonic SLA DC LED module 7,7W and 12.2W. Each of them is available in three correlated color temperatures.
