| Catalogue ID | CCT | Light Output | Power | Dimensions |
| ARCH-LINEA5-S-15-927-14-Y | 2700K | 780 lm | 14W | 30 x 145 x 36mm |
| ARCH-LINEA5-S-15-930-14-Y | 3000K | 800 lm | 14W | 30 x 145 x 36mm |
| ARCH-LINEA5-S-15-940-14-Y | 4000K | 850 lm | 14W | 30 x 145 x 36mm |
| ARCH-LINEA5-S-25-927-14-Y | 2700K | 780 lm | 14W | 30 x 145 x 36mm |
| ARCH-LINEA5-S-25-930-14-Y | 3000K | 800 lm | 14W | 30 x 145 x 36mm |
| ARCH-LINEA5-S-25-940-14-Y | 4000K | 850 lm | 14W | 30 x 145 x 36mm |
| ARCH-LINEA5-S-35-927-14-Y | 2700K | 780 lm | 14W | 30 x 145 x 36mm |
| ARCH-LINEA5-S-35-930-14-Y | 3000K | 800 lm | 14W | 30 x 145 x 36mm |
| ARCH-LINEA5-S-35-940-14-Y | 4000K | 850 lm | 14W | 30 x 145 x 36mm |
[Table here]

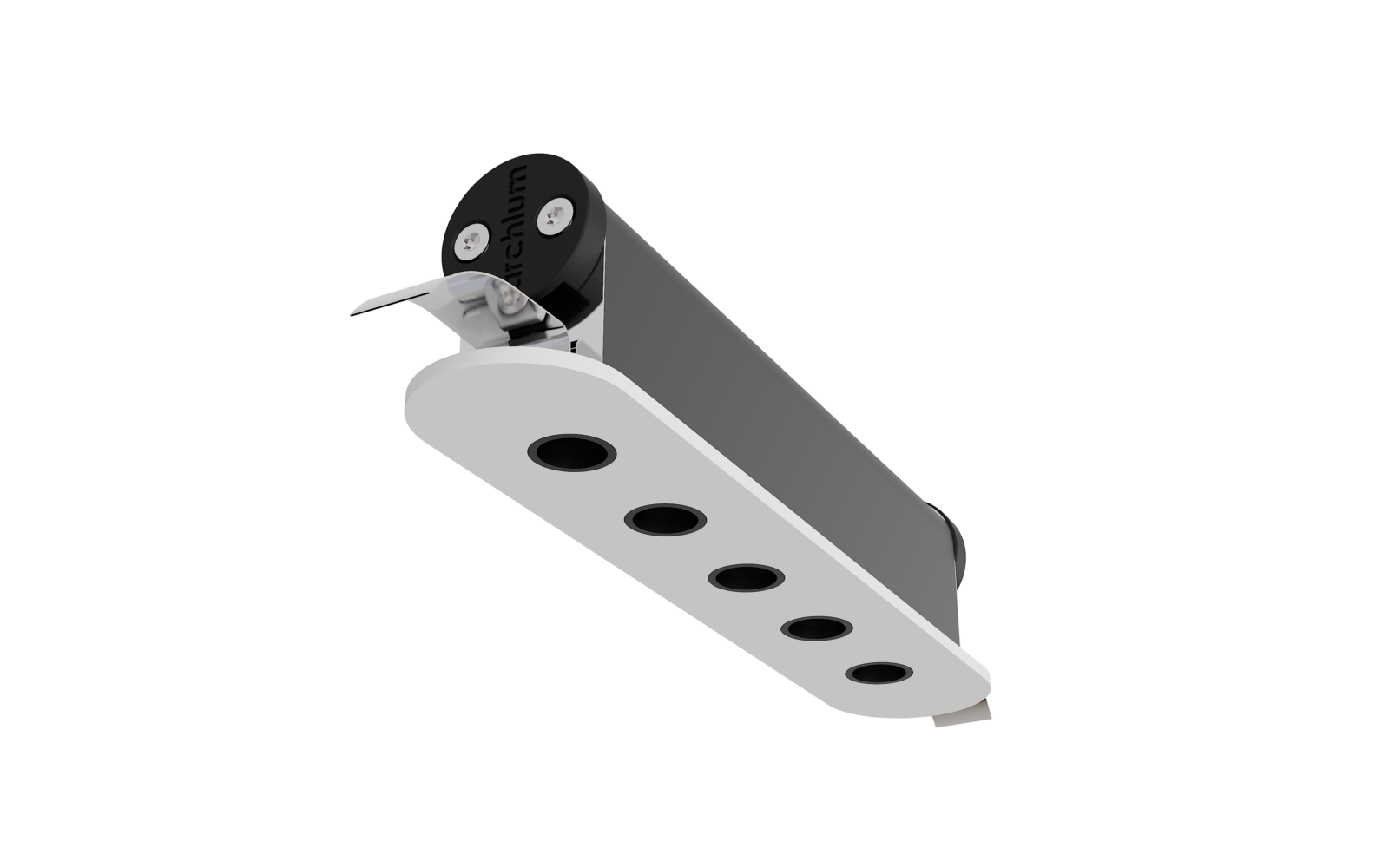

The modern and minimalist appearance of Mini Linear 5 fits into every architectural design concept. The high quality optical lens provides maximum visual comfort and lighting control.
MINI Linear 5 enables a vast range of application possibilities by offering three different beam angles: 15°, 25°, and 35°. While the spot lens provides accent lighting, the wide beam can be used for general illumination and in situations where close-range lights are required.
Design features
With a width of only 30 mm, Mini Linear luminaires are ideal for application in small recesses as an invisible light source. Only 10 mm aperture and dark deep nose are used to mask the light source. Providing the best glare-reduction, absorbing any scattered light and shears at 40°.
Optical features
Mini Linear luminaires are suitable for various applications with three different beam angle alternatives. Micro-optic system provides high performance from miniature dimensions.
Mechanical features
The aluminium housing and optimised heat sink provide robustness and allows Mini Linear 5 to reach a power of 14W. Mini Linear luminaires have IP40 level dust and water ingress protection.
