| Catalogue ID | CCT | Light Output | Power | Dimensions |
| ARCH-LINEA10-S-15-927-28-Y | 2700K | 1560 lm | 28W | 30 x 145 x 33mm |
| ARCH-LINEA10-S-15-930-28-Y | 3000K | 1600 lm | ||
| ARCH-LINEA10-S-15-940-28-Y | 4000K | 1700 lm | ||
| ARCH-LINEA10-S-25-927-28-Y | 2700K | 1560 lm | ||
| ARCH-LINEA10-S-25-930-28-Y | 3000K | 1600 lm | ||
| ARCH-LINEA10-S-25-940-28-Y | 4000K | 1700 lm | ||
| ARCH-LINEA10-S-35-927-28-Y | 2700K | 1560 lm | ||
| ARCH-LINEA10-S-35-930-28-Y | 3000K | 1600 lm | ||
| ARCH-LINEA10-S-35-940-28-Y | 4000K | 1700 lm |

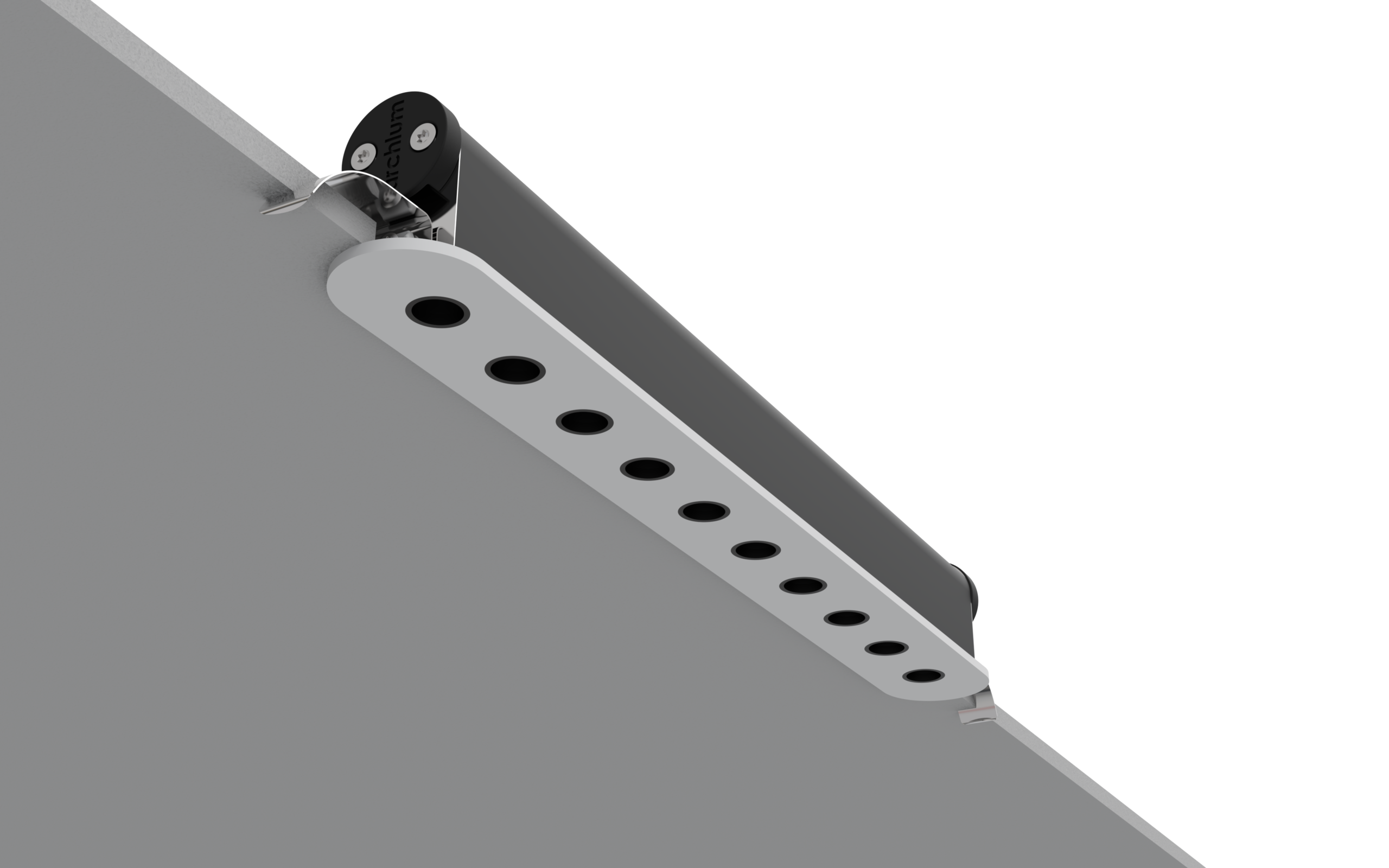

The modern and minimalist appearance of Aya Ten fits into every architectural design concept. The high quality optical lens provides maximum visual comfort and lighting control.
Aya Ten enables a vast range of application possibilities by offering three different beam angles: 15°, 25°, and 35°. While the spot lens provides accent lighting, the wide beam can be used for general illumination and in situations where close-range lights are required.
Design features
With a width of only 30 mm, Aya luminaires are ideal for application in small recesses as an invisible light source. Only 10 mm aperture and dark deep nose are used to mask the light source. Providing the best glare-reduction, absorbing any scattered light and shears at 40°.
Optical features
Aya luminaires are suitable for various applications with three different beam angle alternatives. Micro-optic system provides high performance from miniature dimensions.
Mechanical features
The aluminium housing and optimised heat sink provide robustness and allows Aya 10 to reach a power of 28W. Aya luminaires have IP40 level dust and water ingress protection.
